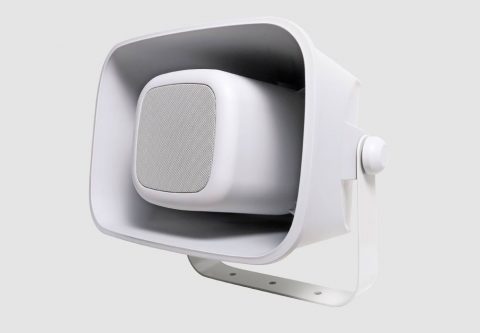

C 2070A • Compact 30W Weatherproof 8 Ohm/100V Line Music Horn

This horn speaker is designed to meet a wide range of installation needs with ease and flexibility. Built to endure harsh construction environments with its IP66 rating, it ensures reliable performance in demanding locations.

SKU: C 2070A Categories: , , ,
Overview
This horn speaker is designed to meet a wide range of installation needs with ease and flexibility. Built to endure harsh construction environments with its IP66 rating, it ensures reliable performance in demanding locations. Delivering exceptional voice clarity, this horn speaker provides a high level of speech intelligibility for various applications. It is eminently suited to outdoor applications where a high standard of speech and music reproduction is demanded eg: schools, gymnasiums, aquatic centres, sporting arenas, stadiums etc.

Key Features:

  • IP66 weatherproof rated for outdoor use.
  • Aluminium mesh grille for rust free performance.
  • Rotary switch power tap selector.
  • 8 Ohm or 100V line use.
  • High clarity for speech and music reproduction.
  • 5 year Redback speaker performance warranty.







5-year-warrantyBacked by an industry leading 5 Year Speaker Performance Warranty.
This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Specifications
Input Power: 3.8W, 7.5W, 15W, 30W and 8Ω
Rated Impedance: 8Ω
Sound Pressure Level: 95 ± 3dB (1M/1W)
Frequency Response: 180Hz – 14kHz
Speaker Unit: 5”
Mounting Hole size: 3 x Ø11mm. Distance between holes = 51mm
Speaker Installation Method: Bracket Installation
Connection Mode: Two core jacketed wire
Material: Panel: ABS, Mesh Cover: Aluminium mesh, Bracket: Powdercoated Steel
Working Temperature: -25°C to 55°C
StorageTemperature: -40°C to 70°C
Relative Humidity: ≤95%
Dimensions: 366 x 172 x 270mm
Weight: 3kg
