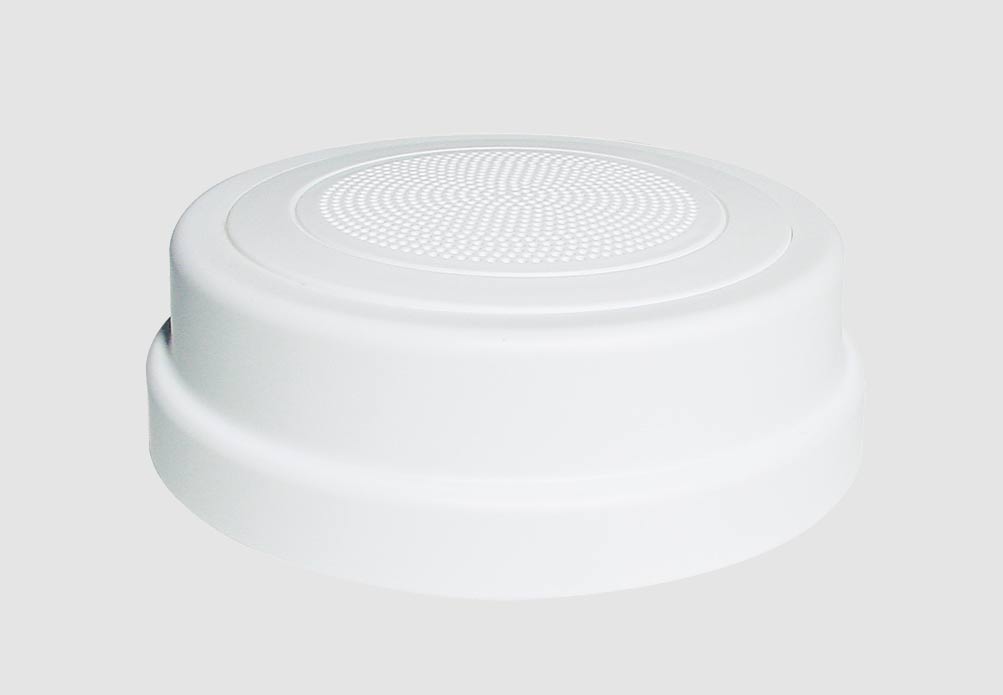

C 0703 • 100mm 5W 100V White One-Shot Surface Mount EWIS Speaker

A surface mount speaker designed for installation on concrete slabs and ceilings. Screw fits directly to the surface or may be used in conjunction with C 0699 conduit mounting plate.

SKU: C 0703 Categories: ,
Overview

A high performance surface mount PA speaker designed for EWIS (fire & evacuation) installations. The enclosure is moulded from industrial grade, talc-filled polypropylene and designed to mount directly to the underside of concrete slabs or inaccessible ceilings. The housing utilises the One-Shot® mounting system for reduced installation time. They are ideal for use in plant rooms, warehouses, shopping centres, malls etc.

 Key Features:

  • Excellent speech intelligibility
  • High quality speaker driver developed for BGM, paging and emergency warning applications
  • Patented 2 way latching system reduces installation time.
  • Fitted with 4 way wire protect terminal block for loop in, loop out wiring as required by Australian Standards.
  • Fitted with supervisory capacitor for line monitoring.
  • High impact enclosure & grille.
  • Australian designed & assembled.
  • 5 year warranty.



The Labour Saving One-Shot® Mounting System

Redback® “One-Shot®” speaker units install in seconds providing substantial labour cost savings for the professional installer compared to traditional mounting methods. They simply snap fit to the outer mounting ring by means of the integral pressure clips. The snap clip material is formulated to retain long service life strength and spring action, ensuring a firm vibration free fit. Speaker cable entry can be either from the rear, or via surface mounted conduit (four 19mm conduit knockouts are provided). The neutral white RAL colour provides an architecturally unobtrusive finish to virtually any installation. The transformer is fitted with a 4 way wire protect screw terminal block. This is suitable for loop in, loop out cabling.




5-year-warrantyBacked by an industry leading 5 Year Speaker Performance Warranty.
This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Specifications
Electrical
Power taps: 0.33, 0.66, 1.25, 2.5, 5W
SPL 1W @ 1m: 91dB @ 1kHz (+/- 2dB)
Frequency response: 100Hz-15kHz
Connection: 4 way terminal block + 22uF bipolar capacitor

Mechanical
Enclosure material: Talc filled polypropelene
Driver construction: Paper twin cone
Enclosure diameter: 210mmØ
Depth: 67mm
Overall weight: 900g
Colour: White

Environmental
Operating temperature: -25°C to +55°C
Relative humidity: < 95%

Additional Installation Accessories
C 0699 Conduit mounting plate
